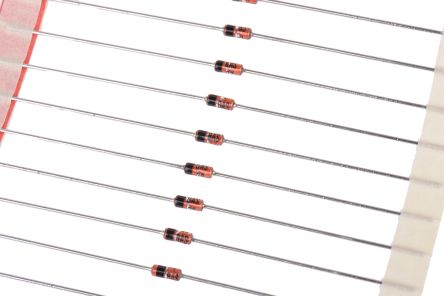

Vishay BAS33-TAP Switching Diode, 200mA 30V, 2-Pin DO-35 [BAS33-TAP]; 145-2039
by Vishay
0₫
Mã kho: 1452039
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 200mA |
| Diode Configuration | Single |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 30V |
| Package Type | DO-35 |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop | 1V |
| Pin Count | 2 |
| Maximum Diode Capacitance | 3pF |
| Maximum Operating Temperature | +175 °C |
| Length | 3.9mm |
| Dimensions | 1.7 (Dia.) x 3.9mm |
| Diameter | 1.7mm |
