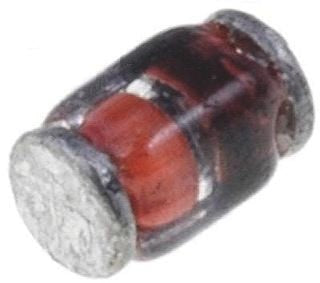

Vishay BAQ334-TR Switching Diode, 200mA 60V, 2-Pin MicroMELF [BAQ334-TR]; 165-2975
by Vishay
0₫
Mã kho: 1652975
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Maximum Forward Current | 200mA |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Reverse Voltage | 60V |
Package Type | MicroMELF |
Diode Technology | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1V |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +175 °C |
Length | 2mm |
Width | 1.2mm |
Height | 1.2mm |
Dimensions | 2 x 1.2 x 1.2mm |
