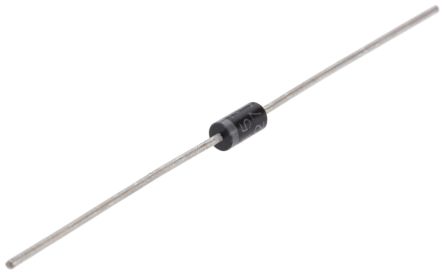

Vishay BA157-E3/54 Switching Diode, 1A 400V, 2-Pin DO-204AL [BA157-E3/54]; 145-2034
by Vishay
0₫
Mã kho: 1452034
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 1A |
| Diode Configuration | Single |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 400V |
| Package Type | DO-204AL |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.3V |
| Maximum Diode Capacitance | 12pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 5.2mm |
| Dimensions | 2.7 (Dia.) x 5.2mm |
| Diameter | 2.7mm |
