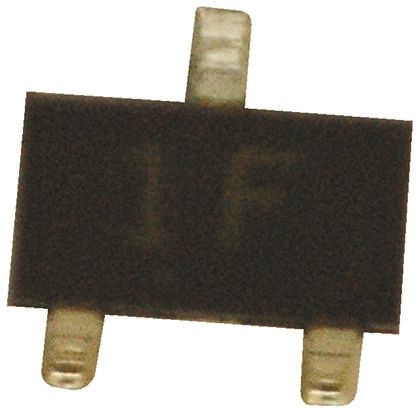

Toshiba 85V 100mA, Dual Diode, 3-Pin SOT-346 1SS226(F) [1SS226(F)]; 540-5668
by Toshiba
0₫
Mã kho: 5405668
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Series |
| Number of Elements per Chip | 2 |
| Mounting Type | Surface Mount |
| Package Type | SOT-346 (SC-59) |
| Diode Technology | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 2.9mm |
| Width | 1.5mm |
| Height | 1.1mm |
| Dimensions | 1.1 x 2.9 x 1.5mm |
