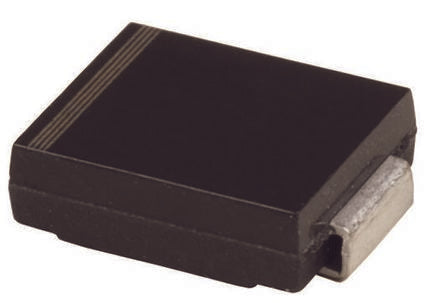

Taiwan Semi 200V 3A, Diode, 2-Pin DO-214AB ES3D R7 [ES3D R7]; 146-2303
0₫
Mã kho: 1462303
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Package Type | DO-214AB (SMC) |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 950mV |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 7.11mm |
| Width | 6.22mm |
| Height | 2.62mm |
| Dimensions | 7.11 x 6.22 x 2.62mm |
