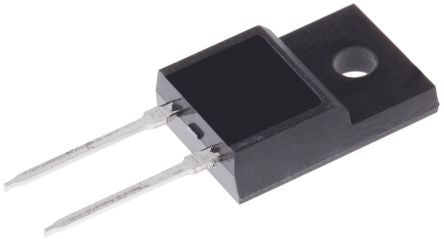

STMicroelectronics STTH812FP Switching Diode, 8A 1200V, 2-Pin TO-220FPAC [STTH812FP]; 168-7731
0₫
Mã kho: 1687731
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 8A |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 1200V |
| Package Type | TO-220FPAC |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 2.2V |
| Maximum Diode Capacitance | 12pF |
| Maximum Operating Temperature | +175 °C |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 16.4mm |
| Dimensions | 10.4 x 4.6 x 16.4mm |
