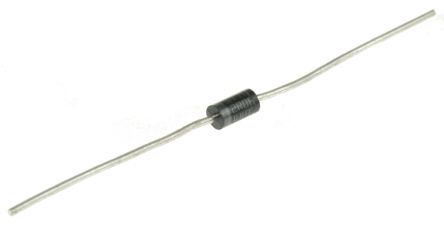

STMicroelectronics STTH2R06 Switching Diode, 2A 600V, 2-Pin DO-41 [STTH2R06]; 168-7252
0₫
Mã kho: 1687252
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Forward Current | 2A |
Diode Configuration | Single |
Mounting Type | Through Hole |
Number of Elements per Chip | 1 |
Maximum Reverse Voltage | 600V |
Package Type | DO-41 |
Diode Technology | Silicon Junction |
Maximum Forward Voltage Drop | 1.7V |
Pin Count | 2 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +175 °C |
Length | 5.2mm |
Dimensions | 2.71 (Dia.) x 5.2mm |
Diameter | 2.71mm |
