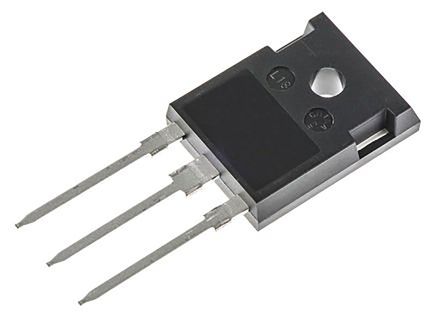

STMicroelectronics STTH20W02CW Dual Switching Diode, Common Cathode, 20A 200V, 3-Pin TO-247 [STTH20W02CW]; 829-0475
0₫
Mã kho: 8290475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Common Cathode |
Maximum Forward Current | 20A |
Number of Elements per Chip | 2 |
Mounting Type | Through Hole |
Maximum Reverse Voltage | 200V |
Package Type | TO-247 |
Pin Count | 3 |
Maximum Forward Voltage Drop | 1.4V |
Maximum Operating Temperature | +175 °C |
Length | 15.75mm |
Width | 5.15mm |
Height | 20.15mm |
Dimensions | 15.75 x 5.15 x 20.15mm |
