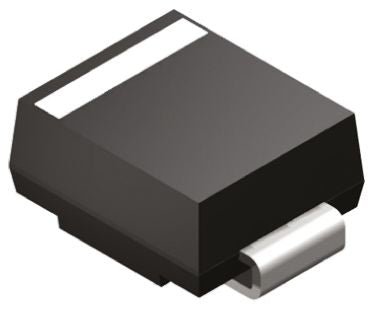

ON Semi 400V 2A, Diode, 2-Pin DO-214AA NRVUS240T3G [NRVUS240T3G]; 163-1095
0₫
Mã kho: 1631095
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Package Type | DO-214AA (SMB) |
Diode Technology | Silicon Junction |
Maximum Forward Voltage Drop | 1.3V |
Pin Count | 2 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +175 °C |
Length | 4.6mm |
Width | 3.95mm |
Height | 2.09mm |
Dimensions | 4.6 x 3.95 x 2.09mm |
