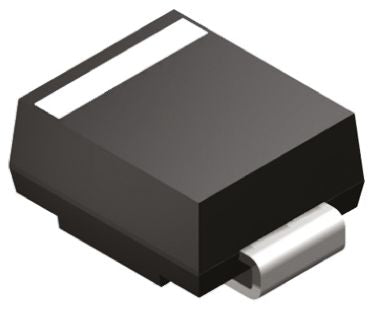

ON Semi 100V 2A, Diode, 2-Pin DO-214AA MURS210T3G [MURS210T3G]; 781-1087
0₫
Mã kho: 7811087
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Package Type | DO-214AA (SMB) |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop | 940mV |
| Pin Count | 2 |
| Minimum Operating Temperature | -60 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 4.6mm |
| Width | 3.95mm |
| Height | 2.09mm |
| Dimensions | 4.6 x 3.95 x 2.09mm |
