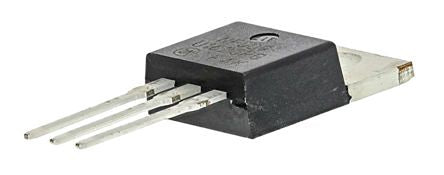

ON Semi 200V 16A, Dual Diode, 3-Pin TO-220AB MUR1620CTRG [MUR1620CTRG]; 103-2959
0₫
Mã kho: 1032959
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Continuous Forward Current | 16A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Common Anode |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.2V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 85ns |
| Peak Non-Repetitive Forward Surge Current | 100A |
