![ON Semiconductor MR856RLG 1453101](http://nguyenxuong.com/cdn/shop/products/F6255313-01_444x188.jpg?v=1594219872)

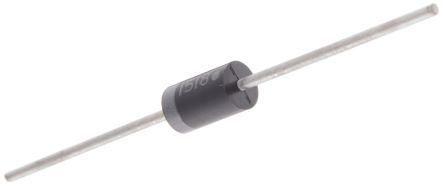

ON Semi 600V 3A, Diode, 2-Pin DO-201AD MR856RLG [MR856RLG]; 145-3101
0₫
Mã kho: 1453101
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Mounting Type | Through Hole |
Number of Elements per Chip | 1 |
Package Type | DO-201AD |
Diode Technology | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.25V |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +125 °C |
Length | 9.5mm |
Width | 5.3mm |
Height | 5.3mm |
Dimensions | 5.3 x 9.5 x 5.3mm |
Diameter | 5.3mm |
