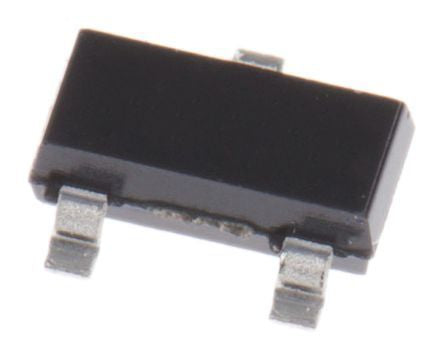

ON Semiconductor MMBD914LT1G Switching Diode, 200mA 100V, 3-Pin SOT-23 [MMBD914LT1G]; 184-1452
0₫
Mã kho: 1841452
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Forward Current | 200mA |
Diode Configuration | Single |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Reverse Voltage | 100V |
Package Type | SOT-23 |
Pin Count | 3 |
Maximum Diode Capacitance | 4pF |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Length | 3.04mm |
Width | 1.4mm |
Height | 1.01mm |
Dimensions | 3.04 x 1.4 x 1.01mm |
Power Dissipation | 300mW |
Automotive Standard | AEC-Q101 |
