![ON Semiconductor MMBD7000 1840996](http://nguyenxuong.com/cdn/shop/products/P1840996-01_444x359.jpg?v=1594096441)

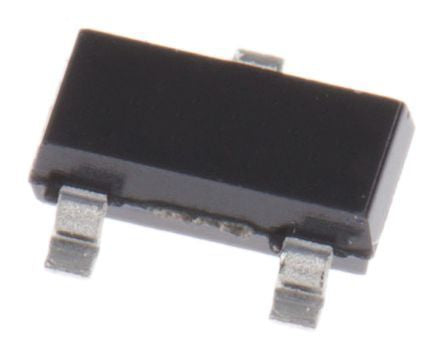

ON Semiconductor MMBD7000 Dual Switching Diode, 200mA 100V, 3-Pin SOT-23 [MMBD7000]; 184-0996
0₫
Mã kho: 1840996
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Forward Current | 200mA |
Mounting Type | Surface Mount |
Number of Elements per Chip | 2 |
Maximum Reverse Voltage | 100V |
Package Type | SOT-23 |
Pin Count | 3 |
Maximum Diode Capacitance | 1.5pF |
Maximum Operating Temperature | +150 °C |
Length | 2.92mm |
Width | 1.3mm |
Height | 0.93mm |
Dimensions | 2.92 x 1.3 x 0.93mm |
Power Dissipation | 350mW |
