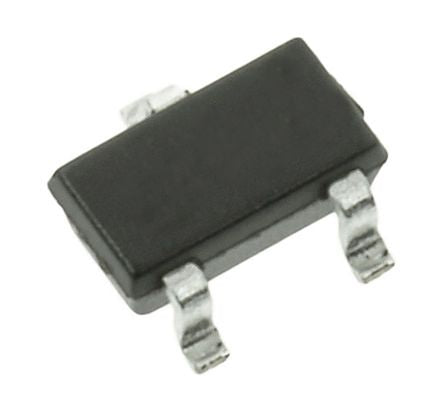

ON Semiconductor M1MA152WKT1G Dual Switching Diode, Common Cathode, 100 mA, 150 mA 80V, 3-Pin SOT-346 (SC-59) [M1MA152WKT1G]; 145-3201
0₫
Mã kho: 1453201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Cathode |
| Maximum Forward Current | 100 mA, 150 mA |
| Number of Elements per Chip | 2 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 80V |
| Package Type | SOT-346 (SC-59) |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop | 1.2V |
| Pin Count | 3 |
| Maximum Diode Capacitance | 2pF |
| Maximum Operating Temperature | +150 °C |
| Length | 3.1mm |
| Width | 1.7mm |
| Height | 1.2mm |
| Dimensions | 3.1 x 1.7 x 1.2mm |
| Maximum Series Resistance @ Maximum IF | 100 Ω @ 100 mA |
