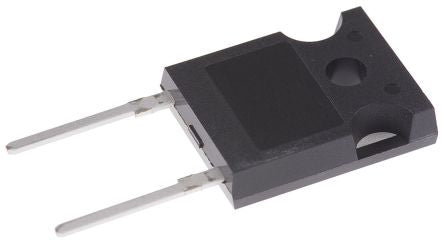

![ON Semiconductor ISL9R3060G2 1661880](http://nguyenxuong.com/cdn/shop/products/R8629343-01_444x243.jpg?v=1594254353)
ON Semi 600V 30A, Diode, 2-Pin TO-247 ISL9R3060G2 [ISL9R3060G2]; 166-1880
0₫
Mã kho: 1661880
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Mounting Type | Through Hole |
Number of Elements per Chip | 1 |
Package Type | TO-247 |
Diode Technology | Silicon Junction |
Maximum Forward Voltage Drop | 2.4V |
Pin Count | 2 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Length | 15.87mm |
Width | 4.82mm |
Height | 20.82mm |
Dimensions | 15.87 x 4.82 x 20.82mm |
