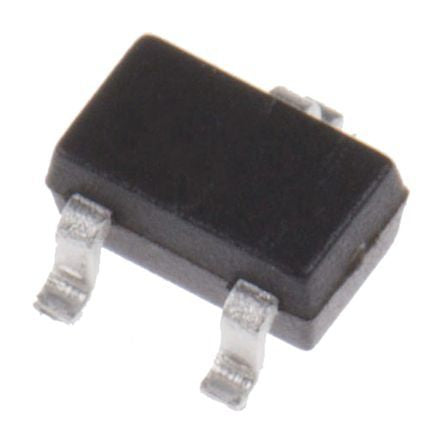

SS SC70 SWCH DIO 70V TR [BAV99RWT1G]; 184-4663
0₫
Mã kho: 1844663
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 215mA |
| Diode Configuration | Series |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 2 |
| Maximum Reverse Voltage | 100V |
| Package Type | SC-70 |
| Pin Count | 3 |
| Maximum Diode Capacitance | 1.5pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.2mm |
| Width | 1.35mm |
| Height | 1mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Automotive Standard | AEC-Q101 |
| Power Dissipation | 300mW |
