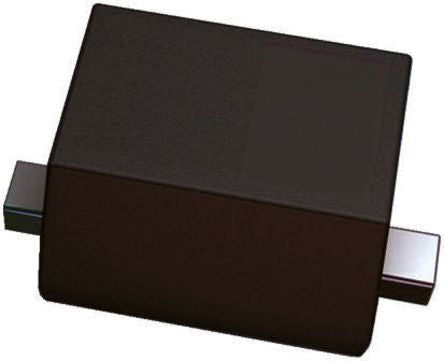

ON Semiconductor Switching Diode [1N914BWT]; 146-2166
0₫
Mã kho: 1462166
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 300mA |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 75V |
| Package Type | SOD-523F |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 720mV |
| Maximum Diode Capacitance | 4pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.3mm |
| Width | 0.9mm |
| Height | 0.7mm |
| Dimensions | 1.3 x 0.9 x 0.7mm |
| Power Dissipation | 200mW |
