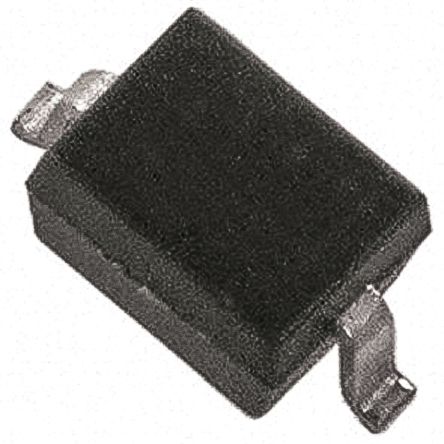

Nexperia BAS321,135 General Purpose Diode, 250mA 200V, 2-Pin SOD-323 [BAS321,135]; 170-8055
by Nexperia
0₫
Mã kho: 1708055
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 250mA |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 200V |
| Package Type | SOD-323 |
| Pin Count | 2 |
| Maximum Diode Capacitance | 2pF |
| Maximum Operating Temperature | +150 °C |
| Length | 1.8mm |
| Width | 1.35mm |
| Height | 1.05mm |
| Dimensions | 1.8 x 1.35 x 1.05mm |
| Power Dissipation | 300mW |
