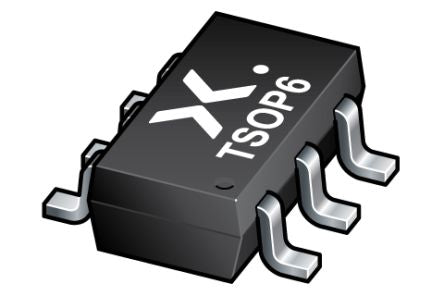

Nexperia BAS21VD,135 Triple Switching Diode, 200mA 200V, 6-Pin SOT-457, TSOP [BAS21VD,135]; 170-5440
by Nexperia
0₫
Mã kho: 1705440
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 200mA |
| Number of Elements per Chip | 3 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 200V |
| Package Type | SOT-457, TSOP |
| Pin Count | 6 |
| Maximum Diode Capacitance | 5pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Width | 1.7mm |
| Height | 1mm |
| Dimensions | 3.1 x 1.7 x 1mm |
| Power Dissipation | 295mW |
| Automotive Standard | AEC-Q101 |
