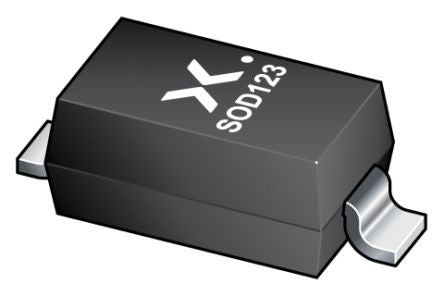

Nexperia BAS16GWX General Purpose Diode, 215mA 100V, 2-Pin SOD-123 [BAS16GWX]; 151-2589
by Nexperia
0₫
Mã kho: 1512589
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 215mA |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 100V |
| Package Type | SOD-123 |
| Pin Count | 2 |
| Maximum Diode Capacitance | 1.5pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.8mm |
| Width | 1.7mm |
| Height | 1.3mm |
| Dimensions | 2.8 x 1.7 x 1.3mm |
| Automotive Standard | AEC-Q101 |
| Power Dissipation | 357mW |
