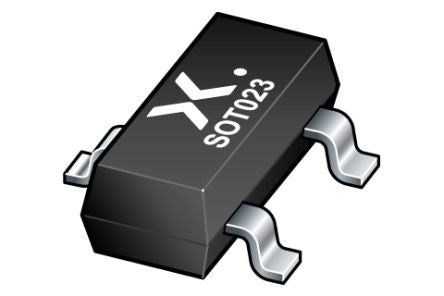

Nexperia BAS101,215 Switching Diode, 200mA 600V, 3-Pin SOT-23 [BAS101,215]; 170-5451
by Nexperia
0₫
Mã kho: 1705451
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 200mA |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 600V |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Maximum Diode Capacitance | 2pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Width | 1.4mm |
| Height | 1mm |
| Dimensions | 3 x 1.4 x 1mm |
| Power Dissipation | 250mW |
