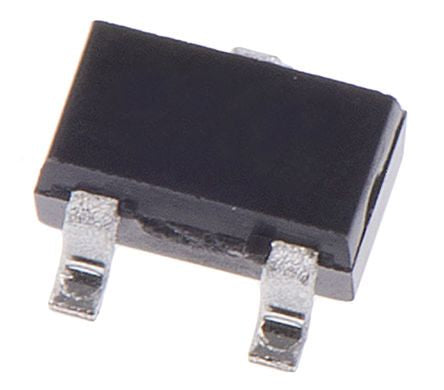

Nexperia 1PS302,115 Dual Switching Diode, Series, 200mA, 3-Pin SOT-323 [1PS302,115]; 166-0585
by Nexperia
0₫
Mã kho: 1660585
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Forward Current | 200mA |
Diode Configuration | Series |
Number of Elements per Chip | 2 |
Mounting Type | Surface Mount |
Package Type | SOT-323 (SC-70) |
Diode Technology | Silicon Junction |
Maximum Forward Voltage Drop | 1.2V |
Pin Count | 3 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Length | 2.2mm |
Width | 1.35mm |
Height | 1mm |
Dimensions | 2.2 x 1.35 x 1mm |
