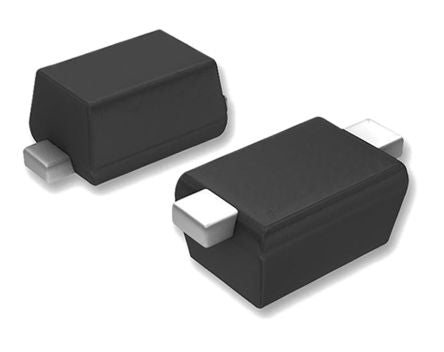

Infineon BAS1602VH6327XTSA1 Switching Diode, 200mA 80V, 2-Pin SC-79 [BAS1602VH6327XTSA1]; 752-7802
by Infineon
0₫
Mã kho: 7527802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 200mA |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 80V |
| Package Type | SC-79 |
| Maximum Forward Voltage Drop | 1.25V |
| Pin Count | 2 |
| Maximum Diode Capacitance | 2pF |
| Maximum Operating Temperature | +150 °C |
| Length | 1.2mm |
| Width | 0.8mm |
| Height | 0.55mm |
| Dimensions | 1.2 x 0.8 x 0.55mm |
