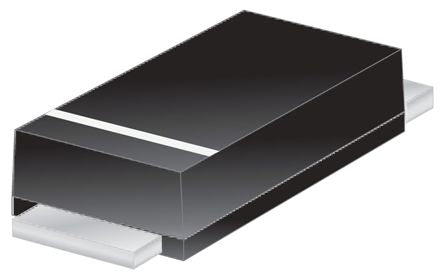

Diodes Inc US2JDF-13 Switching Diode, 1A 600V, 2-Pin D-FLAT [US2JDF-13]; 921-1256
by DiodesZetex
0₫
Mã kho: 9211256
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 1A |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 600V |
| Package Type | D-FLAT |
| Maximum Forward Voltage Drop | 1.7V |
| Pin Count | 2 |
| Maximum Diode Capacitance | 10pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.6mm |
| Width | 2.95mm |
| Height | 1.1mm |
| Dimensions | 4.6 x 2.95 x 1.1mm |
