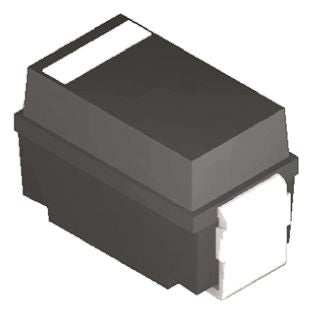

Diodes Inc US1K-13-F Switching Diode, 1A 800V, 2-Pin SMA [US1K-13-F]; 122-1240
by DiodesZetex
0₫
Mã kho: 1221240
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 1A |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 800V |
| Package Type | SMA |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.7V |
| Maximum Diode Capacitance | 10pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.6mm |
| Width | 2.92mm |
| Height | 2.1mm |
| Dimensions | 4.6 x 2.92 x 2.1mm |
