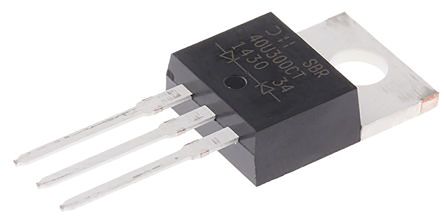

Diodes Inc SBR40U300CT Dual Switching Diode, Common Cathode, 40A 300V, 3-Pin TO-220AB [SBR40U300CT]; 121-9565
by DiodesZetex
0₫
Mã kho: 1219565
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Cathode |
| Maximum Forward Current | 40A |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 2 |
| Maximum Reverse Voltage | 300V |
| Package Type | TO-220AB |
| Diode Technology | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 890mV |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 10.66mm |
| Width | 4.82mm |
| Height | 16.51mm |
| Dimensions | 10.66 x 4.82 x 16.51mm |
