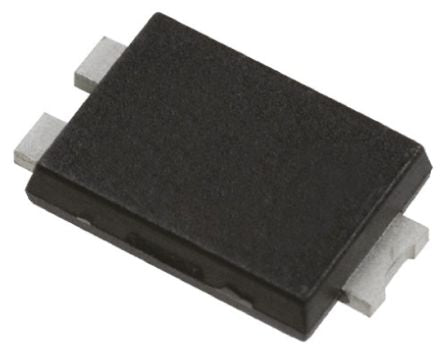

Diodes Inc PDU620-13 Switching Diode, 6A 200V, 3-Pin PowerDI 5 [PDU620-13]; 922-8430
by DiodesZetex
0₫
Mã kho: 9228430
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 6A |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 200V |
| Package Type | PowerDI 5 |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop | 975mV |
| Pin Count | 3 |
| Maximum Diode Capacitance | 375pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 5.45mm |
| Width | 4.05mm |
| Height | 1.15mm |
| Dimensions | 5.45 x 4.05 x 1.15mm |
