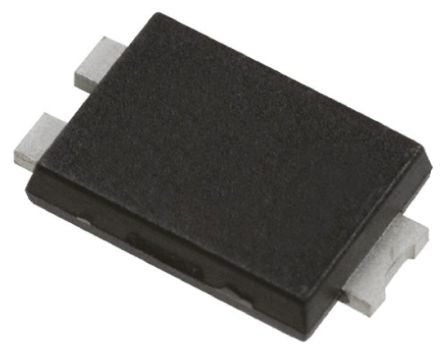

Diodes Inc PDU620-13 Switching Diode, 6A 200V, 3-Pin PowerDI 5 [PDU620-13]; 751-4691
by DiodesZetex
0₫
Mã kho: 7514691
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Maximum Forward Current | 6A |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Reverse Voltage | 200V |
Package Type | PowerDI 5 |
Maximum Forward Voltage Drop | 975mV |
Pin Count | 3 |
Maximum Diode Capacitance | 375pF |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +175 °C |
Length | 5.45mm |
Width | 4.05mm |
Height | 1.15mm |
Dimensions | 5.45 x 4.05 x 1.15mm |
