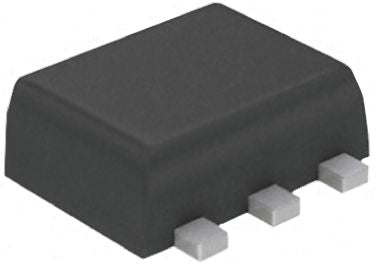

Diodes Inc BAV99BRVA-7 Quad Switching Diode, 2x Series Pair, 215mA 75V, 6-Pin SOT-563 [BAV99BRVA-7]; 770-5250
by DiodesZetex
0₫
Mã kho: 7705250
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 215mA |
| Diode Configuration | 2x Series Pair |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 4 |
| Maximum Reverse Voltage | 75V |
| Package Type | SOT-563 |
| Maximum Forward Voltage Drop | 1.25V |
| Pin Count | 6 |
| Maximum Diode Capacitance | 1.5pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Width | 1.25mm |
| Height | 0.6mm |
| Dimensions | 1.7 x 1.25 x 0.6mm |
