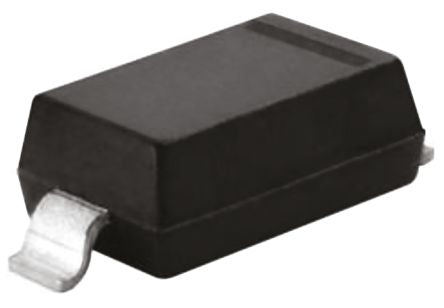

Diodes Inc BAV116W-7-F Switching Diode, 215mA 130V, 2-Pin SOD-123 [BAV116W-7-F]; 122-0870
by DiodesZetex
0₫
Mã kho: 1220870
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Forward Current | 215mA |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 130V |
| Package Type | SOD-123 |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.25V |
| Maximum Diode Capacitance | 5pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.85mm |
| Width | 1.7mm |
| Height | 1.35mm |
| Dimensions | 2.85 x 1.7 x 1.35mm |
