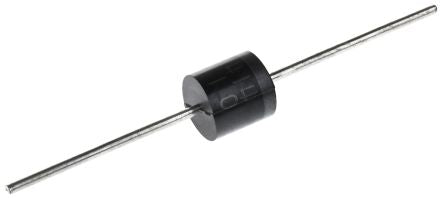

Diodes Inc 6A10-T Switching Diode, 6A 1000V, 2-Pin R 6 [6A10-T]; 751-2755
by DiodesZetex
0₫
Mã kho: 7512755
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 6A |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Reverse Voltage | 1000V |
| Package Type | R 6 |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 900mV |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 9.1mm |
| Dimensions | 9.1 (Dia.) x 9.1mm |
| Diameter | 9.1mm |
