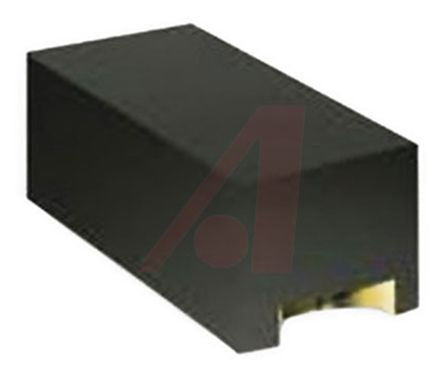

COMCHIP TECHNOLOGY CDSU4148 Switching Diode, 150mA 75V, 2-Pin SOD-523F [CDSU4148]; 906-6876
0₫
Mã kho: 9066876
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 150mA |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Reverse Voltage | 75V |
| Package Type | SOD-523F |
| Maximum Forward Voltage Drop | 1V |
| Pin Count | 2 |
| Maximum Diode Capacitance | 4pF |
| Maximum Operating Temperature | +125 °C |
| Length | 1.8mm |
| Width | 1mm |
| Height | 0.85mm |
| Dimensions | 1.8 x 1 x 0.85mm |
| Power Dissipation | 150mW |
