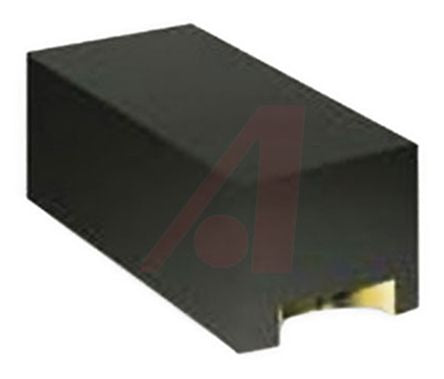

COMCHIP TECHNOLOGY CDSU101A Switching Diode, 100mA 80V, 2-Pin SOD-523F [CDSU101A]; 906-6879
0₫
Mã kho: 9066879
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Maximum Forward Current | 100mA |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Reverse Voltage | 80V |
Package Type | SOD-523F |
Maximum Forward Voltage Drop | 1V |
Pin Count | 2 |
Maximum Diode Capacitance | 3pF |
Maximum Operating Temperature | +125 °C |
Length | 1.8mm |
Width | 1mm |
Height | 0.85mm |
Dimensions | 1.8 x 1 x 0.85mm |
Power Dissipation | 150mW |
