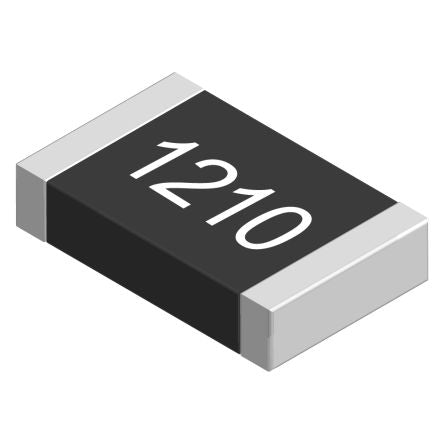

33kΩ 1210 Thick Film SMD Resistor ±1% 0.5W - ERJP14F3302U [ERJP14F3302U]; 721-8277
by Panasonic
0₫
Mã kho: 7218277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 33 kΩ |
| Technology | Thick Film |
| Package/Case | 1210 (3225M) |
| Tolerance | ±1% |
| Power Rating | 0.5W |
| Temperature Coefficient | ±100ppm/°C |
| Automotive Standard | AEC-Q200 |
| Series | ERJP14 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
