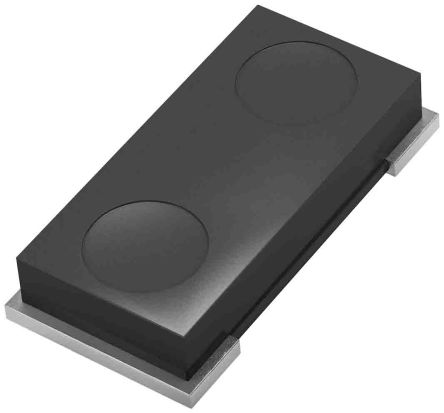

8mΩ 2512 Metal Plate Current Sensing Surface Mount Fixed Resistor ±1% 2W - ERJMS4HF8M0U [ERJMS4HF8M0U]; 122-3775
by Panasonic
0₫
Mã kho: 1223775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 8 mΩ |
| Technology | Metal Plate |
| Package/Case | 2512 (6432M) |
| Tolerance | ±1% |
| Power Rating | 2W |
| Temperature Coefficient | ±75ppm/°C |
| Series | ERJMS4H |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +170°C |
