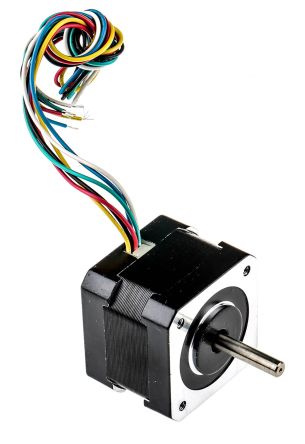

RS PRO Unipolar Hybrid Stepper Motor 1.8°, 4 V, 950 mA, 6 Wires; 180-5277
by RS PRO
0₫
Mã kho: 1805277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 1.8° |
| Number Of Wires | 6 |
| Voltage Rating | 4 V |
| Frame Size | 42.3 x 42.3mm |
| Stepper Motor Type | Hybrid |
| Shaft Diameter | 5mm |
| Current Rating | 950 mA |
| Winding Arrangement | Unipolar |
| Shaft Length | 22mm |
| Depth | 33mm |
| Resistance Per Phase | 4.2Ω |
