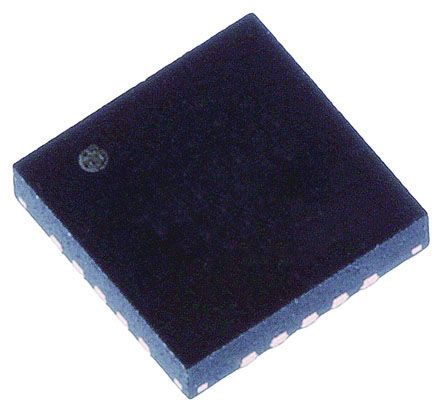

Texas Instruments TXB0108RGYR, Voltage Level Shifter, 3-State, 20-Pin QFN [TXB0108RGYR]; 162-6475
0₫
Mã kho: 1626475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Voltage Level Translator |
| Maximum High Level Output Current | -0.02mA |
| Maximum Low Level Output Current | 0.02mA |
| Output Type | 3 State |
| Maximum Propagation Delay Time @ Maximum CL | 9.5 ns @ 1.8 V |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 20 |
| Dimensions | 4.5 x 3.5 x 0.8mm |
| Height | 0.8mm |
| Length | 4.5mm |
| Maximum Operating Supply Voltage | 3.6 V, 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.2 V, 1.65 V |
| Width | 3.5mm |
