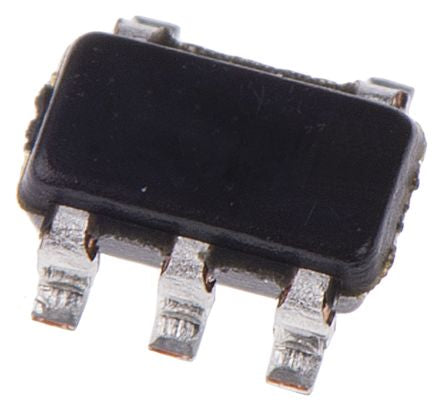

Texas Instruments SN74AHCT1G08DBVR, 2-Input AND Logic Gate, 4.5 → 5.5 V, 5-Pin SOT-23 [SN74AHCT1G08DBVR]; 527-996
0₫
Mã kho: 527996
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Logic Family | AHCT |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ Maximum CL | 7.9 ns @ 5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 8mA |
| Length | 2.9mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.6mm |
| Dimensions | 2.9 x 1.6 x 1.15mm |
| Height | 1.15mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +85 °C |
