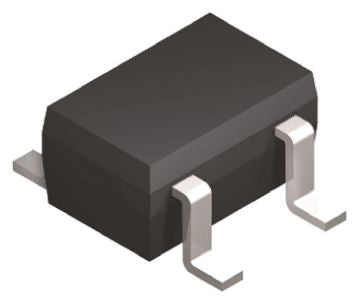

ON Semiconductor NC7SP05P5X Inverter, 0.9 → 3.6 V, 5-Pin S70 [NC7SP05P5X]; 806-6162
0₫
Mã kho: 8066162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Output Type | Open Drain |
| Number of Elements per Chip | 1 |
| Schmitt Trigger Input | No |
| Maximum Propagation Delay Time @ Maximum CL | 43 ns @ 30 pF |
| Maximum Low Level Output Current | 2.6mA |
| Mounting Type | Surface Mount |
| Package Type | S70 |
| Pin Count | 5 |
| Logic Family | LVCMOS |
| Dimensions | 2 x 1.25 x 0.9mm |
| Height | 0.9mm |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 30pF |
| Minimum Operating Supply Voltage | 0.9 V |
| Width | 1.25mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 2mm |
| Maximum Operating Temperature | +85 °C |
