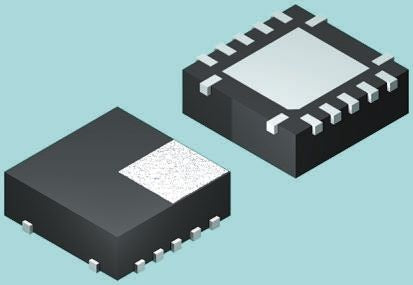

ON Semiconductor 74LCX14BQX Hex Schmitt Trigger Inverter, 14-Pin DQFN [74LCX14BQX]; 166-3143
0₫
Mã kho: 1663143
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Output Type | Power Down High Impedance |
| Number of Elements per Chip | 6 |
| Schmitt Trigger Input | Yes |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns @ 50 pF |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Mounting Type | Surface Mount |
| Package Type | DQFN |
| Pin Count | 14 |
| Logic Family | LCX |
| Dimensions | 3 x 2.5 x 0.75mm |
| Height | 0.75mm |
| Length | 3mm |
| Width | 2.5mm |
| Minimum Operating Supply Voltage | 2 V |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
