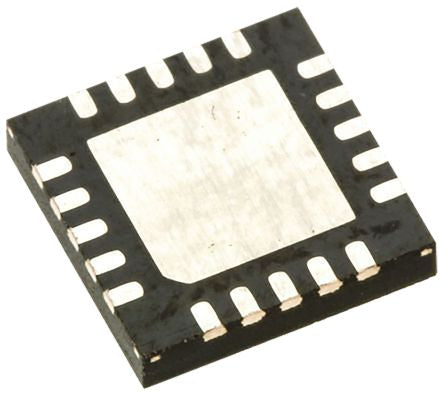

Analog Devices ADG3304BCPZ-REEL7, Logic Level Translator, VCCA to VCCY, VCCY to VCCA, CMOS, 20-Pin LFCSP [ADG3304BCPZ-REEL7]; 168-4908
0₫
Mã kho: 1684908
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CMOS |
| Logic Function | Level Translator |
| Translation | VCCA to VCCY, VCCY to VCCA |
| Maximum High Level Output Current | 20µA |
| Maximum Low Level Output Current | 20µA |
| Output Type | CMOS |
| Maximum Propagation Delay Time @ Maximum CL | 25 (A → Y) ns @ 50 pF, 35 (Y → A) ns @ 15 pF |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Pin Count | 20 |
| Dimensions | 4.1 x 4.1 x 0.75mm |
| Height | 0.75mm |
| Length | 4.1mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 15 (Y → A) pF, 50 (A → Y) pF |
| Minimum Operating Supply Voltage | 1.15 V |
| Minimum Operating Temperature | -40 °C |
| Width | 4.1mm |
