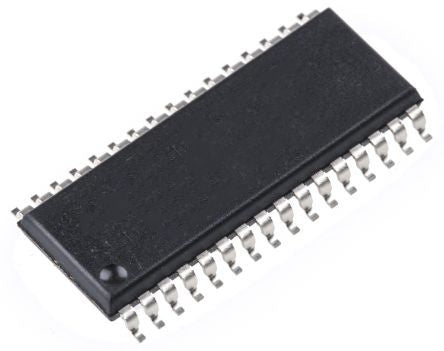

Cypress Semiconductor SRAM, CY14B256LA-SZ45XI- 256kbit [CY14B256LA-SZ45XI]; 171-0964
0₫
Mã kho: 1710964
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 256kbit |
| Organisation | 32K x 8 bit |
| Number of Words | 32K |
| Number of Bits per Word | 8bit |
| Maximum Random Access Time | 45ns |
| Address Bus Width | 8bit |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 32 |
| Dimensions | 20.878 x 7.594 x 2.286mm |
| Height | 2.286mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Width | 7.594mm |
| Length | 20.878mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 3.6 V |
