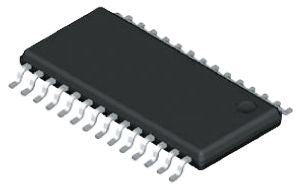

Alliance Memory SRAM, U62256AS2C07LLG1- 256kbit [U62256AS2C07LLG1]; 170-0888
0₫
Mã kho: 1700888
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 256kbit |
| Organisation | 32K x 8 bit |
| Number of Words | 32K |
| Number of Bits per Word | 8bit |
| Maximum Random Access Time | 56ns |
| Address Bus Width | 15bit |
| Low Power | Yes |
| Timing Type | Asynchronous |
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Pin Count | 28 |
| Dimensions | 18.49 x 8.64 x 2.49mm |
| Height | 2.49mm |
| Maximum Operating Supply Voltage | 5 V |
| Length | 18.49mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 3.3 V |
| Width | 8.64mm |
