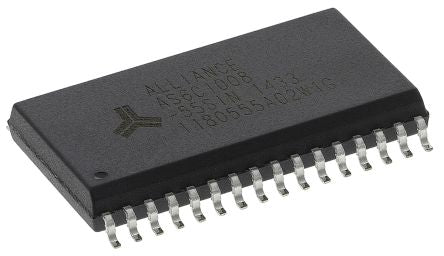

Alliance Memory SRAM Memory, AS6C1008-55SIN- 1Mbit [AS6C1008-55SIN]; 177-5518
0₫
Mã kho: 1775518
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 1Mbit |
Organisation | 128K words x 8 bit |
Number of Words | 128K |
Number of Bits per Word | 8bit |
Maximum Random Access Time | 55ns |
Address Bus Width | 17bit |
Low Power | Yes |
Timing Type | Asynchronous |
Mounting Type | Surface Mount |
Package Type | SOP |
Pin Count | 32 |
Dimensions | 20.75 x 11.3 x 2.82mm |
Height | 2.82mm |
Maximum Operating Supply Voltage | 5.5 V |
Length | 20.75mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Minimum Operating Supply Voltage | 2.7 V |
Width | 11.3mm |
