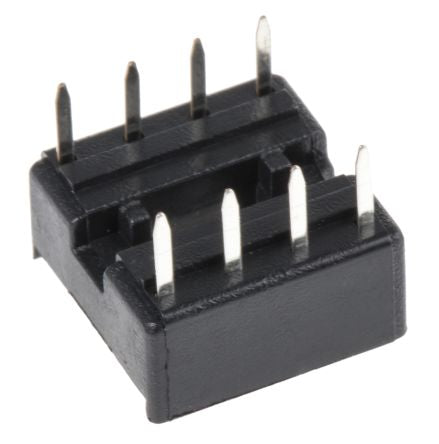

Winslow W3100 2.54mm Pitch Vertical 8 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 10A [W3108TRC]; 402-759
by Winslow
0₫
Mã kho: 402759
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 8 |
| Mounting Type | Through Hole |
| Pin Type | Stamped |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 10A |
| Orientation | Vertical |
| Length | 10.03mm |
| Width | 4.5mm |
| Depth | 10.14mm |
| Dimensions | 10.03 x 4.5 x 10.14mm |
| Minimum Operating Temperature | -65°C |
| Series | W3100 |
| Contact Material | Phosphor Bronze |
| Housing Material | PBT |
| Maximum Operating Temperature | +150°C |
