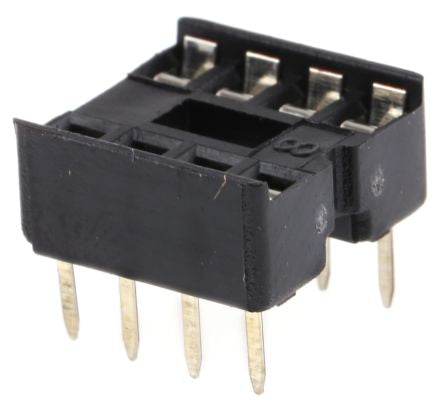

E-TEC 2.54mm Pitch Vertical 8 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A [LOC-308-T051-99]; 600-7849
by E-TEC
0₫
Mã kho: 6007849
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 8 |
| Mounting Type | Through Hole |
| Pin Type | Stamped |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 1A |
| Orientation | Vertical |
| Length | 10.03mm |
| Width | 5.01mm |
| Depth | 10.16mm |
| Dimensions | 10.03 x 5.01 x 10.16mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +125°C |
| Voltage Rating | 100 V |
| Contact Material | Beryllium Copper |
| Housing Material | PBT |
