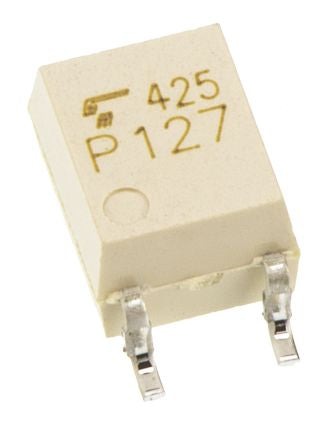

Photocoupler, MOSFET, 1a, 4pin SO6 [TLP175A(V4,E(T]; 885-1427
by Toshiba
0₫
Mã kho: 8851427
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Surface Mount |
Maximum Control Voltage | 48 V |
Contact Configuration | SPNO |
Terminal Type | PCB Pin |
Output Device | MOSFET |
Package Style | SO6 |
Maximum Turn On Time | 5 ms |
Dimensions | 3.7 x 4.55 x 2.1mm |
Operating Temperature Range | -40 → +85°C |
Length | 3.7mm |
Off State Leakage Current | 1 μA |
Relay Type | PhotoMOSFET |
Depth | 4.55mm |
Control Voltage Range | Maximum of 48 V |
Capacitance | 10pF |
Number of Poles | 1 |
Special Features | General Purpose Low Trigger LED Current |
Standards Met | CSA Component Acceptance Service No.5A, CUL, EN60747-5-5, EN60747-5-5(Note), File No.E67349, UL, UL1577 File No.E67349, VDE |
Height | 2.1mm |
