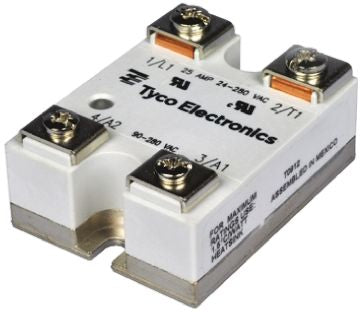

TE Connectivity 25 A SPNO Solid State Relay, Zero Crossing, Chassis Mount, Paired SCR, 280 V rms Maximum Load [SSR-240D25 1393030-7]; 715-0846
0₫
Mã kho: 7150846
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.05 A |
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | Paired SCR |
| Package Style | Hockey Puck |
| Maximum Turn On Time | 8.3 ms |
| Dimensions | 57.15 x 44.45 x 22.1mm |
| Maximum Operating Temperature | +80°C |
| Depth | 44.45mm |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80°C |
| Off State Leakage Current | 0.1 mA |
| Height | 22.1mm |
| Length | 57.15mm |
| Control Voltage Range | 3 → 32 V dc |
| Load Voltage Range | 24 → 280Vrms |
