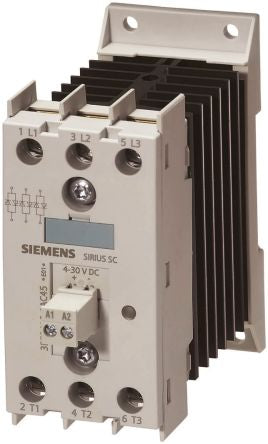

Siemens 40 A 3P-NO Solid State Relay, Zero Crossing, Chassis Mount, Thyristor, 600 V Maximum Load [3RF2440-1AC45]; 612-9040
by Siemens
0₫
Mã kho: 6129040
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.5 A |
| Maximum Load Current | 40 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V |
| Maximum Load Voltage | 600 V |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 30 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | 3P-NO |
| Terminal Type | Screw |
| Output Device | Thyristor |
| Maximum Turn On Time | 1 (+1/2 cycle) ms |
| Dimensions | 157.5 x 121 x 100mm |
| Depth | 121mm |
| Operating Temperature Range | -25 → +60°C |
| Maximum Operating Temperature | +60°C |
| Control Voltage Range | 4 → 30 V dc |
| Minimum Operating Temperature | -25°C |
| Load Voltage Range | 48 → 600V |
| Height | 100mm |
| Length | 157.5mm |
| Off State Leakage Current | 10 mA |
